Impressive in every respect

The P12 Wash with Fresnel lens is not only extremely bright, but also incredibly light, weighing only 23 kg. It is great fun to handle and operate. Thanks to its excellent beaming properties, aperture slider module and special full effect equipment for wash applications, it leaves a lasting impression.

With its zoom range of 11°-66° and 640 watts of LED power, the P12 is right at home in the brightness class of comparable moving heads with 1,200 watts.

Technical Data

  • 640 W white light LED module
    HP (High Power): 6800 K; 46,000 lm (25,000 lm Output); CRI ≥70
    HC (High CRI): 5800 K; 34,000 lm (19,000 lm Output); CRI ≥90
    WW (Warm White): 3200 K; 27,000 lm (15,000 lm Output); CRI ≥91
  • > 20,000 h life time
  • Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
  • Zoom range: 11° – 66° (1:6)
  • Large Fresnel light exit lens
  • Framing module with 4 blades – each fully closing (total curtain) and with separate motion and rotation control, module can be rotated by 110°
  • 1 gobo wheel with 6 rotate-, position- and interchangeable gobos: 5 gobos + 1 multicolor gobo + open
  • CMY color mixing unit for rapid, even color mixing + linear CTO (P12 HP and P12 HC) and linear CTB (P12 WW) respectively
  • P12 HP: 1 color wheel with 7 full and half colors + open and linear color selection + High CRI filter such as 1 color wheel with 7 correction filters + dark red + open
  • P12 HC und P12 WW: 1 color wheel with 7 full and half colors + open and linear color selection + CTB filter such as 1 color wheel with 7 correction filters + dark red + open
  • 2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
  • Motorised infinitely adjustable high-speed iris
  • Electronic dimmer 0% – 100%
  • Electronic shutter with preprogrammed puls- and ramp functions
  • Animation effect / Sparkle effect
  • Focus system with auto focus function
  • 3 phase extra strong stepping motors
  • Precise, very fast and silent movement
  • 540° pan / 280° tilt
  • Protocol: USITT DMX-512, RDM
  • Ethernet / Artnet - sACN
  • Wireless DMX / RDM Lumen Radio CRMX TiMo
  • Bluetooth, Wifi
  • LCD-display with function keys and batterie backup
  • Mini USB for software update
  • Stand-alone mode
  • Master/slave function
  • Built-in DMX analyser
  • Original JB-Lighting slide-in module technology
  • Rugged construction
  • Transport lock for pan/tilt
  • Forced air cooling (temperature regulated, low noise)
  • Graphical display, electronically revolvable
  • 2 Neutrik etherCON Connectors
  • Neutrik 5pin IN/OUT
  • Neutrik powerCON TRUE1 IN/OUT
  • 2 omega brackets for quick and comfortable mounting in any direction with four different mounting possibilities
  • Max. power consumption 800VA
  • Input voltage range 100 – 240V, 50/60HZ
  • Dimensions: W 421 x H 682 x D 264 mm
  • Weight: 23 kg
  • Schuko on powerCON TRUE1,
    flexible rubber cable (2 m long, 3 x 1.5 mm²)
  • 2 Omega brackets

LIGHT COLORS AND FEATURES


P12 Wash
HP – High Power
6800 K
46,000 lm (25,000 lm Output)
≥70 (with CRI filter ≥85)
linear CTO
6800 K to 2700 K
Maximum luminous intensity
for optimal illumination
even from a great distance
P12 Wash
HC – High CRI
5800 K
34,000 lm (19,000 lm Output)
≥90
linear CTO
5800 K to 2500 K
Maximum light quality
for optimal color reproduction
with the best luminosity
P12 Wash
WW – Warm White
3200 K
27,000 lm (15,000 lm Output)
≥91
linear CTB
3200 K to 6500 K
Maximum comparability
with conventional
halogen lamps

Framing module

The P12 Wash is equipped with a framing blade module that can rotate +/- 55°. Each shutter can be adjusted independently in position and angle. This allows countless geometric shapes to be created quickly and precisely, for aiming light at objects and scenes.
Each blade fully closing
right-angled shapers + frost
framing module, +/- 55° rotatable
Each blade individual adjustable

BRILLANT COLORS


The effects unit of the P12 Wash HP is equipped with 7 brilliant full colors and a High CRI filter, which is replaced by a CTB filter in the P12 Wash HC and WW. Furthermore, the effect unit has another color wheel with 7 correction filters and the full color dark red. In addition, the effects unit has been equipped with gobos for special wash applications. The color wheel can be infinitely rotated, which makes it possible to create not only half colours but also great colour effects (e.g. rainbows).
High
CRI
CTB
CTO1
CTO2
CTO3
CTB1
CTB2
CTB3
UV

CMY COLOR MIXING UNIT


The CMY color mixing unit of the P12 Wash expands the color spectrum to an almost unlimited number of colors and enables absolutely harmonious color progressions or transitions.

ZOOM RANGE


The P12 Wash offers a zoom range of 11°– 66° (1:6), which means that both very narrow and wide beams can be easily achieved.

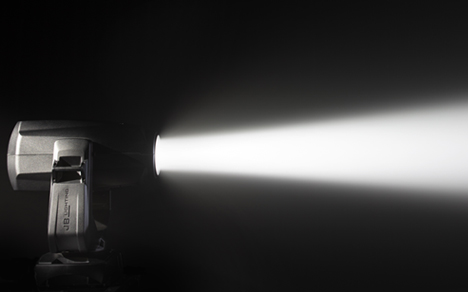

Minimum zoom
Maximum zoom

BEAM CHARACTERISTICS


The beam character of the P12 Wash can be individually varied with the interplay of zoom, focus and frost - from “sharply” defined to soft, flowing beams.
“Sharply” defined beam
Soft beam character

FROST FILTERS


Depending on requirements and stage usage, even more diffuse beams or blurred beam edges can be created using the two infinitely adjustable frost filters.
without frost effect
flood frost

JB SLIDE-IN TECHNOLOGY


Cleaning and gobo changing are child's play with the P12 Wash. All plug-ins can be removed without tools or manual cable disconnection.
Removing effect plug-in
Removing shutter-blade module

References

Aalto Musiktheater Essen
Malmoe Stadsteater
Staatstheater Mainz
Theater Basel
Goethe Universität Frankfurt
Stadttheater Lippstadt
Aalto Musiktheater Essen
Malmoe Stadsteater
Staatstheater Mainz
Theater Basel
Goethe Universität Frankfurt
Stadttheater Lippstadt
Oper Frankfurt am Main
Porsche Zentrum Leipzig
Den Jyske Opera
Staatsoper unter den Linden.jpg
Schauspiel Frankfurt
Schauspielhaus Zürich
Oper Frankfurt am Main
Porsche Zentrum Leipzig
Den Jyske Opera
Staatsoper unter den Linden.jpg
Schauspiel Frankfurt
Schauspielhaus Zürich
Our P12 Wash is already providing one highlight after another here.

DIRECTLY TO THE JB-LIGHTING APP


With our app, you have all the key parameters for JB-Lighting products on hand at all times, plus instant access to manuals, DMX charts and more.

Gobos

The gobo wheel of the P12 Wash is equipped with 6 rotatable, positionable and interchangeable gobos, with which great projection and ration effects are possible even for wash applications - with one specially developed multi-colour and five projection gobos.

Gobo size

Testimonials

We quickly agreed that we needed a moving light that could be a true all-rounder fixture for our needs. It needed to be touring friendly, have a compact housing, lightweight, deliver the highest quality of light possible and have a large zoom area. We also preferred to have the same brand of profile and wash lights. The P12 is the perfect Movinglight for us right now!

Ib Asp, Lighting Designer at
Den Jyske Opera

We quickly agreed that we needed a moving light that could be a true all-rounder fixture for our needs. It needed to be touring friendly, have ...

Ib Asp, Lighting Designer at
Ib Asp, Lighting Designer at
Den Jyske Opera

That works!

the perfect accessory for the washlight P12 Wash
„Made in Germany“

DOUBLE FLIGHT CASE

AMPTOWN (Code CASE38)
  • Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: L 60 x B 60 x H 90 cm
  • Weight (incl. devices): ca. 48 (94) kg

4-COMPARTMENT FLIGHT CASE

AMPTOWN (Code CASE39)
  • Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: L 120 x B 60 x H 90 cm
  • Weight (incl. devices): ca. 76 (168) kg

DIFFUSOR

(Code ZU0022)
  • Optimisation of the WashBeam illumination
  • Dimensions: Ø 159 x 4 mm
  • Weight: 86 g
