F40 Wash: The LED washlight that outshines everything that has come before!
F40 WASH SPECIFICATIONS
You can choose between the F40 Wash HP with 6800 K and CRI 76 (±3), designed for maximum brightness over long distances and, with the High-CRI Filter, delivering a color temperature of 5800 K with CRI ≥90. Or the F40 Wash HC with 5800 K and a CRI of 97 (+/-3), which impresses with its outstanding color quality. Combined with the linear CTO, it also delivers warm white light with outstanding halogen light quality: 3200 K and CRI 97 (+/-3), precisely on the Black Body Line.
Specification:
HP – High Power
Color temperature:
7000 K
Luminosity:
212,000 lm (149,000 lm Output)
CRI:
76 (+/-3), mit CRI-Filter ≥90
Correction filter:
linear CTO
6800 K to 3000 K
6800 K to 3000 K
Usage:
Maximum luminous intensity
Perfect for long distances
and as a high-beam headlamp
Perfect for long distances
and as a high-beam headlamp
Specification:
HC – High CRI
Color temperature:
5800 K
Luminosity:
160,000 lm (105,000 lm Output)
CRI:
97 (+/-3)
Correction filter:
linear CTO
5800 K to 3000 K
5800 K to 3000 K
Usage:
Superior light quality
For vivid colors and natural
skin tones with the best luminosity
For vivid colors and natural
skin tones with the best luminosity
Applications of the F40 Wash

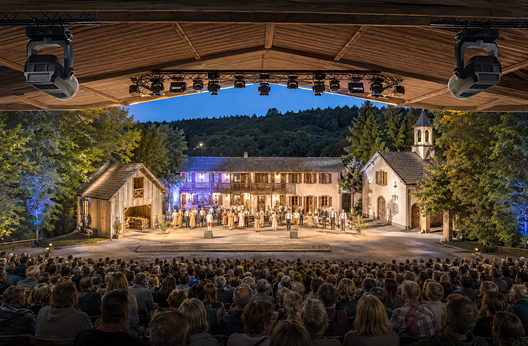

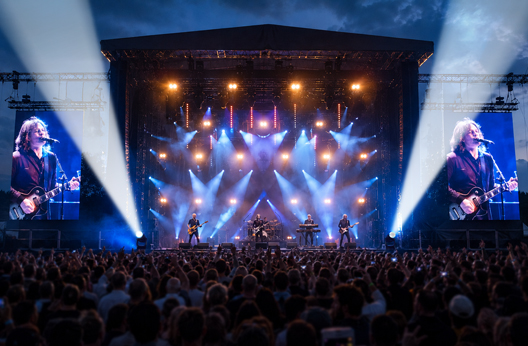

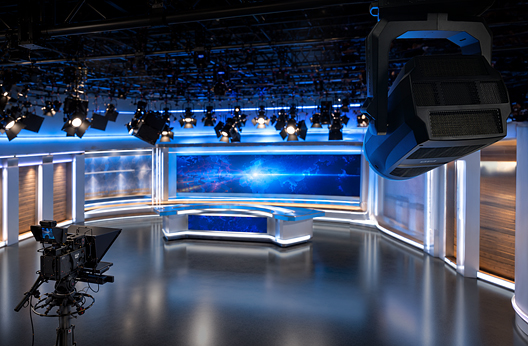

In theatres, it excels as a versatile panorama and overhead lighting fixture – while in events and film, its exceptional performance opens up entirely new and creative lighting possibilities. Whether for a spectacular TV show or a high-energy festival, the F40 Wash makes artists, stages and unforgettable moments stand out impressively in both frontlight and backlight applications.
Backgrounds created with AI assistance.
Downloads
Fast & precise shaping
The F40 Wash framing module features a 4-level blade mechanism, with each of the four blades positioned on its own plane. This allows all four blades to overlap and move precisely parallel to one another. Each blade can also be freely rotated and positioned and inserted at an angle of +/-30° across virtually the entire usable range. This enables fast, precise beam shaping from any hanging position and lighting angle – providing maximum flexibility in lighting design. The framing module itself can also be rotated through 130° and combined with frost.

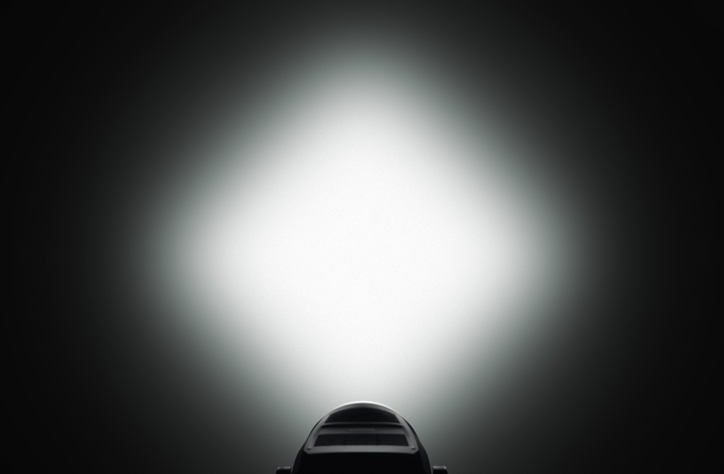

framing module rotatable by +/-65°

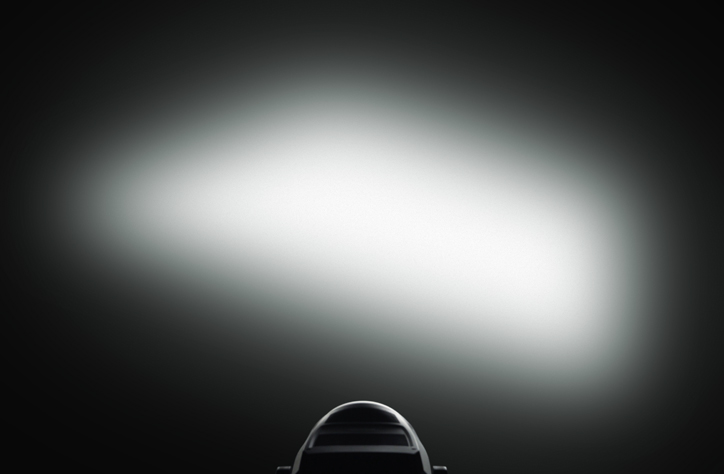

Degree-presice, parallel and accurately positionable
Each blade rotatable by approx. +/-30°
CMY COLOR MIXING & CTC CHANNEL
The F40 Wash combines outstanding color rendering, maximum output and virtually unlimited color versatility. Its effects unit features a CMY color mixing system that continuously overlaps the three color flags to create an enormous color palette – perfectly homogeneous, from the most subtle pastel shades to intensely saturated colors. The virtual CTC channel also allows seamless color temperature adjustment from 2000–13000 K to match existing lighting environments or specific creative requirements.
Homogeneous CMY color mixing
CTC channel for variable color temperature adjustment
F40 EFFECTS UNIT

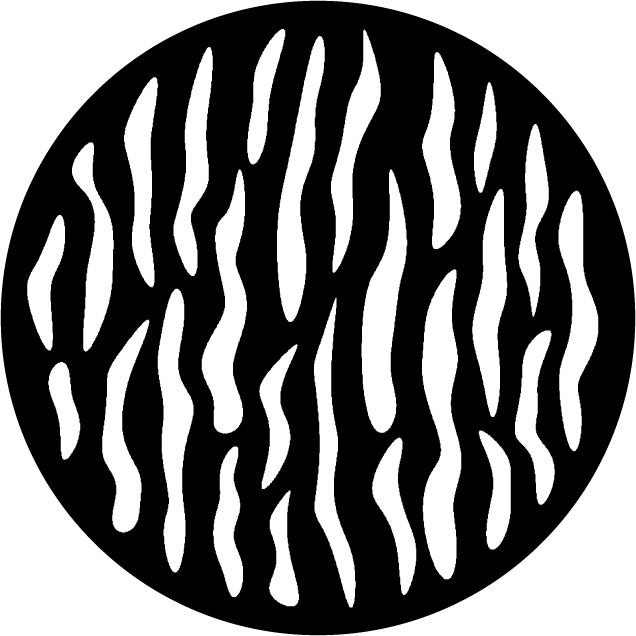

The linear CTO and three correction filters allow precise optimisation of color rendering. In addition to a texture gobo, deep red and UV filters, the HP version features a High-CRI filter, which is replaced by a CTB filter in the F40 Wash HC. In the F40 Wash HP, the High-CRI filter delivers a color temperature of 5800 K with a CRI ≥90 – ideal for particularly natural skin tones. The linear CTO filter also enables precise color temperature adjustment along the Black Body Line: from 6800–3000 K on the F40 Wash HP and from 5800–3000 K on the F40 Wash HC.
CMY color mixing
Linear CTO
Virtual CTC
Deep red
UV
High
CRI
CRI
on the F40 Wash HP
CTB
on the F40 Wash HC
ZOOM RANGE
The Fresnel optics provide exceptionally even light distribution across the entire zoom range of 9°–78° (1:8.6) 1/10 peak, right through to the edges.

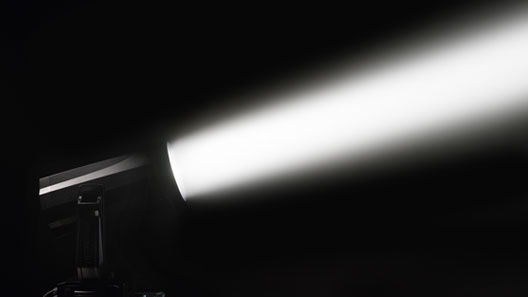

Minimum zoom
Maximum zoom
FROST FILTERS
The 10° frost filter softens the beam edges even further, while the zoom-focus lens allows precise control of the light distribution – from a pronounced hot spot to silky smooth.

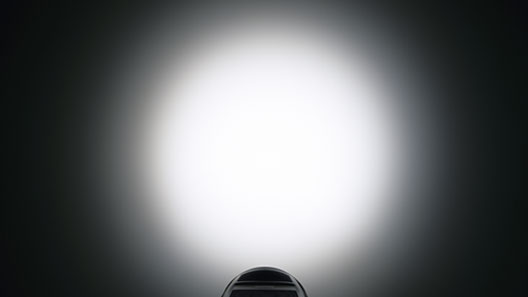

Without frost
With frost
JB PLUG-IN TECHNOLOGY
The two modules of the F40 Wash can be quickly and easily removed for cleaning and servicing – with no tools or manual cable disconnection required.

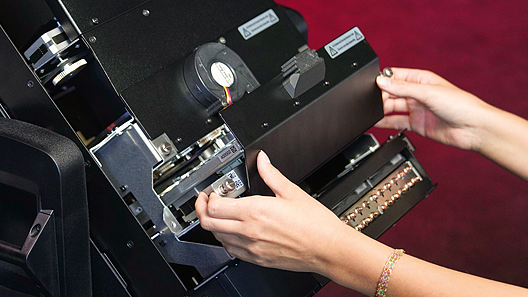

Removing effect plug-in

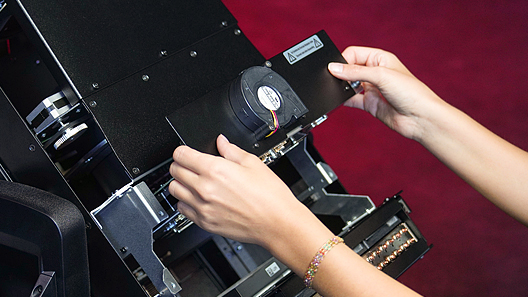

Removing shutter-blade module
OPTIONAL: PATH LIMITER
The F40 Wash is prepared for use with our mechanical path limiter (code ZU0029), which can be used to set the start and end points of the pan and tilt movements.

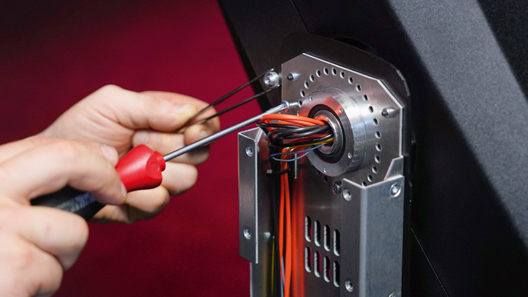

Tilt movement limitation

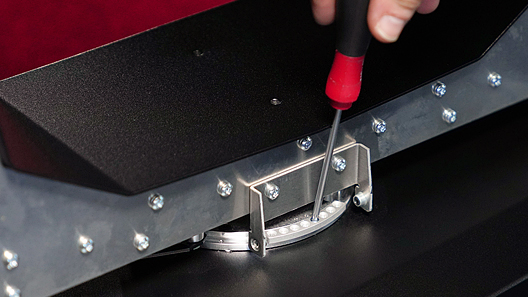

Pan movement limitation
JB USER NETWORK
You want to rent JB moving heads and want to know who is renting the right ones? No problem! Our User Network provides you with the answer.
That works!
Real bespoke work – the perfect case for the F40 Wash
„Made in Germany“
„Made in Germany“

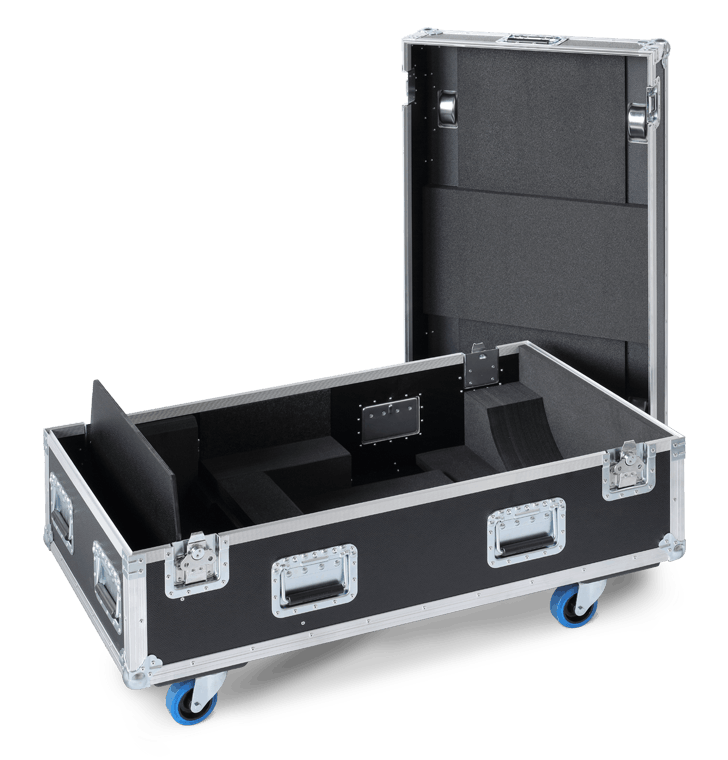

SINGLE FLIGHT CASE
AMPTOWN (Code CASE53)
- Pro case made from 10 mm birch plywood with deep stacking recesses
- Original amptown cases Blue Wheels
- Dimensions: W 120 x B 60 x H 58 cm
- Weight (incl. device): approx. 45 (91) kg
