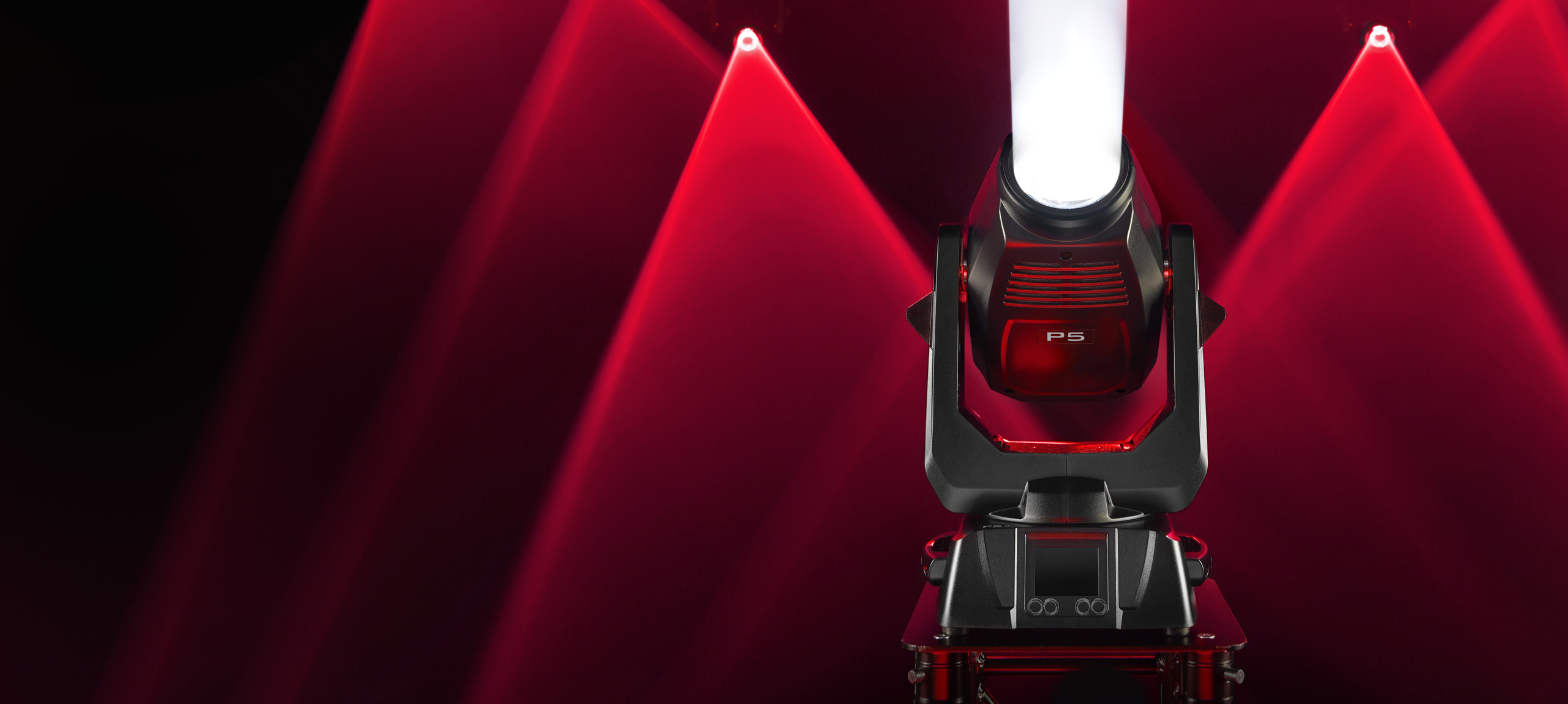

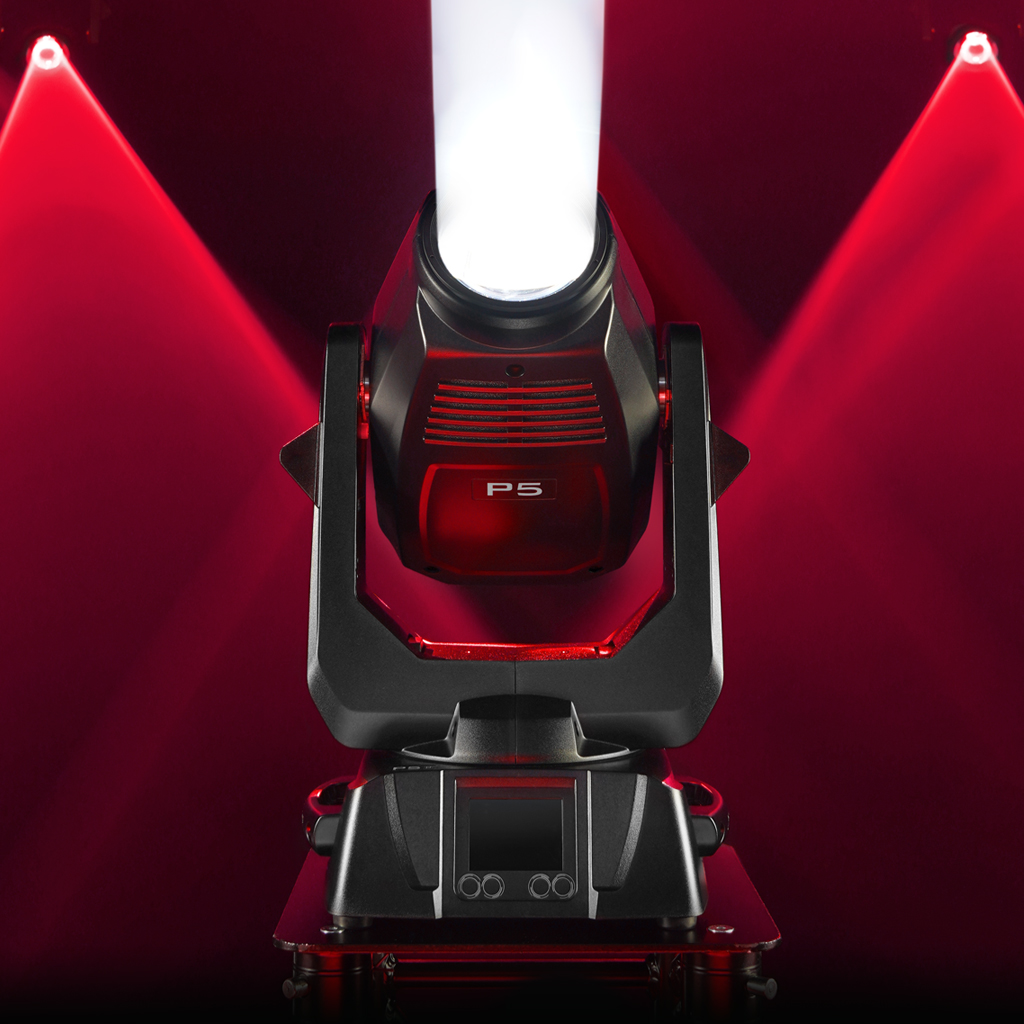

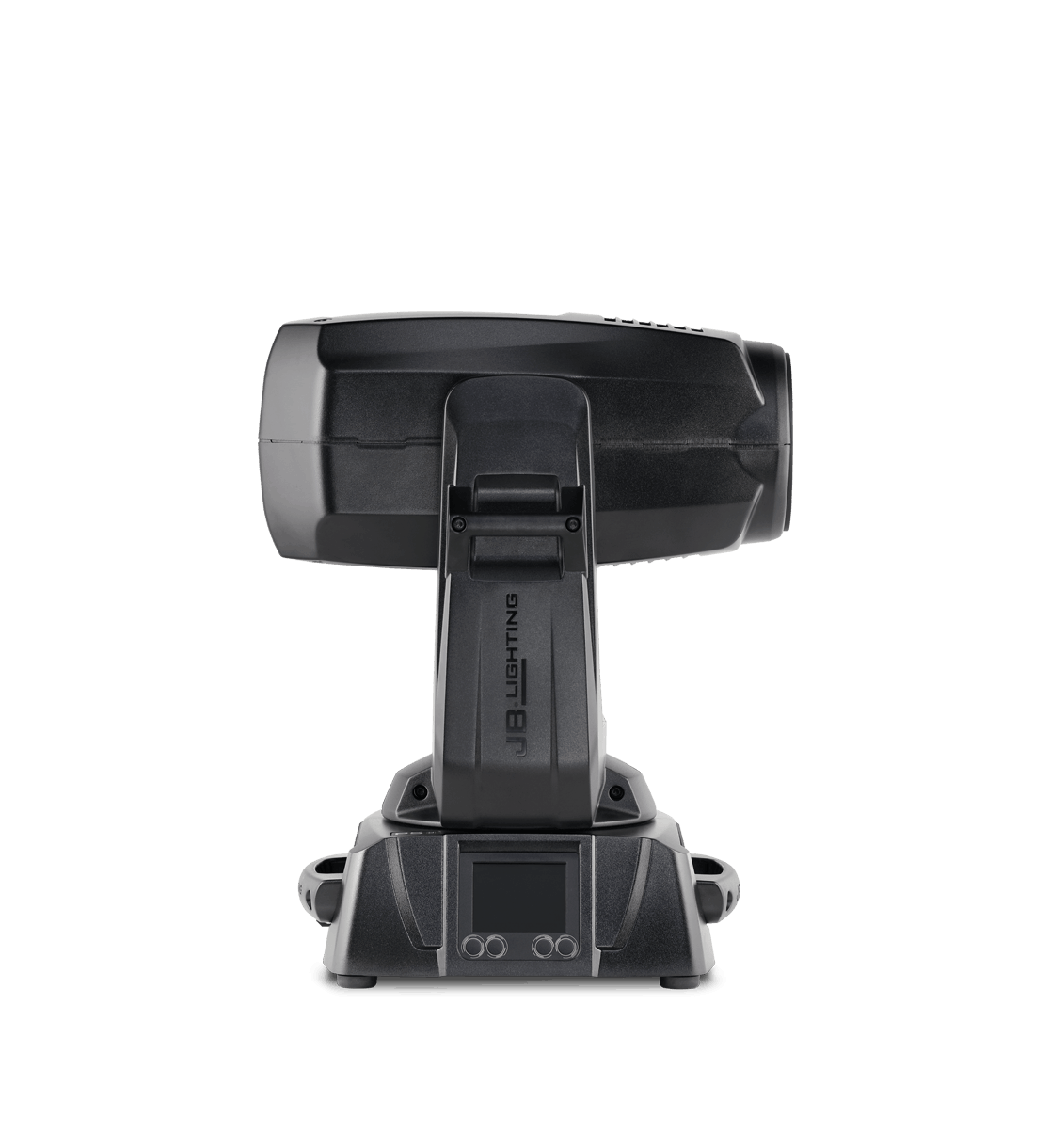

Unique in every respect

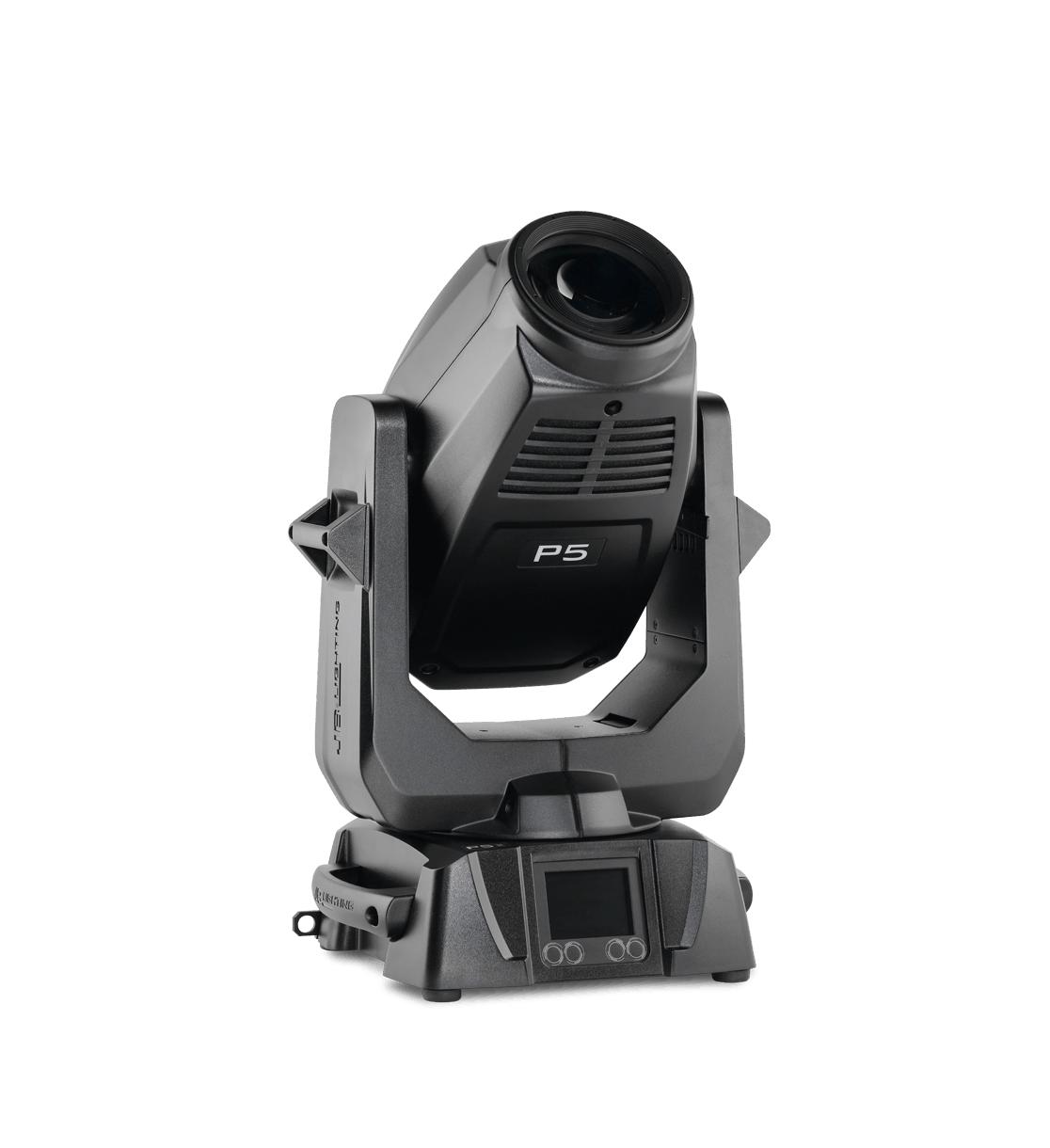

The P5 is the smallest, lightest and most versatile LED spotlight in its class. It combines premium JB quality with state-of-the-art LED technology in a moving head weighing just 10.9 kg. It is not only handy, but also equipped with everything that demanding users could wish for.

It offers an unrivalled zoom range of 2.4°–50°. The colour range is huge and the 9,000 lm output is enormous. In combination with the full range of effects, there are no limits to creative lighting design.

Technical Data:

Optics and light source

200 W white light LED module, 6800 K; 13,000 lm (9,000 lm Output);
CRI 74 (+/-3); TM-30 Rg = 95 (+/-3), TM-30 Rf = 70 (+/-3)
Highly efficient optical system consisting of zoom, focus, and projection lens
Light-emitting lens Ø 95 mm
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and high flex mode

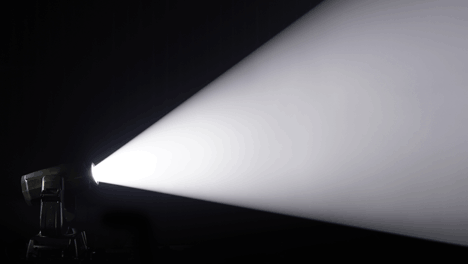

Zoom range: 2.4° – 50° (1:20.8)

Effects

1 gobo wheel with 11 static gobos including a beam reducer gobo + open

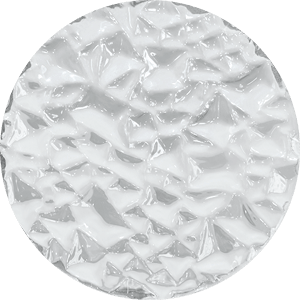

1 gobo wheel with 7 rotatable, positionable and replaceable gobos, including one art glass gobo and one multi color gobo + open

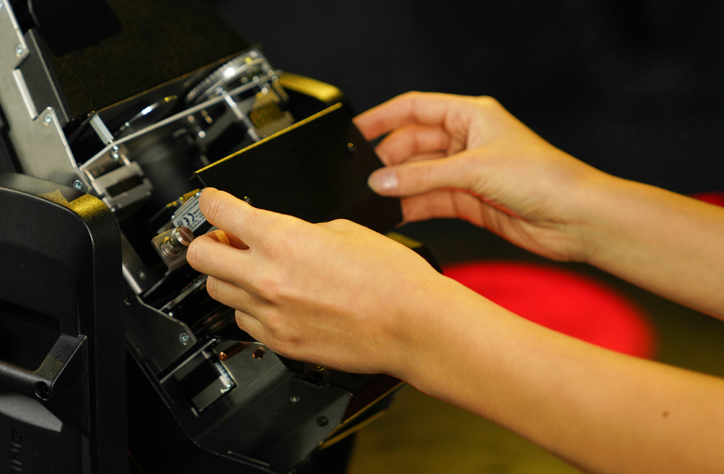

1 color wheel with 8 full or half colors + High CRI filter (= TM-30 filter) + CTO filter and CTB filter + open
CMY color mixing unit for fast and perfectly homogeneous color mixing
CTB filter for automatic color temperature correction for gobo applications (can be switched off)
1 frost filter (5°), infinitely retractable – can be replaced by JB click system, other frost levels available as options: 1°, 2°, 3,5°, 10°, 20°
1 prism, 3-section circular
Electronic dimmer 0% – 100%, 3 selectable dimming curves
Electronic shutter with pre-programmed pulse and ramp functions
Virtual green/magenta correction to adapt to the surrounding light
Virtual CTC adjustment: all light colors 2000–13000 K

Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
541° pan / 281° tilt

Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo

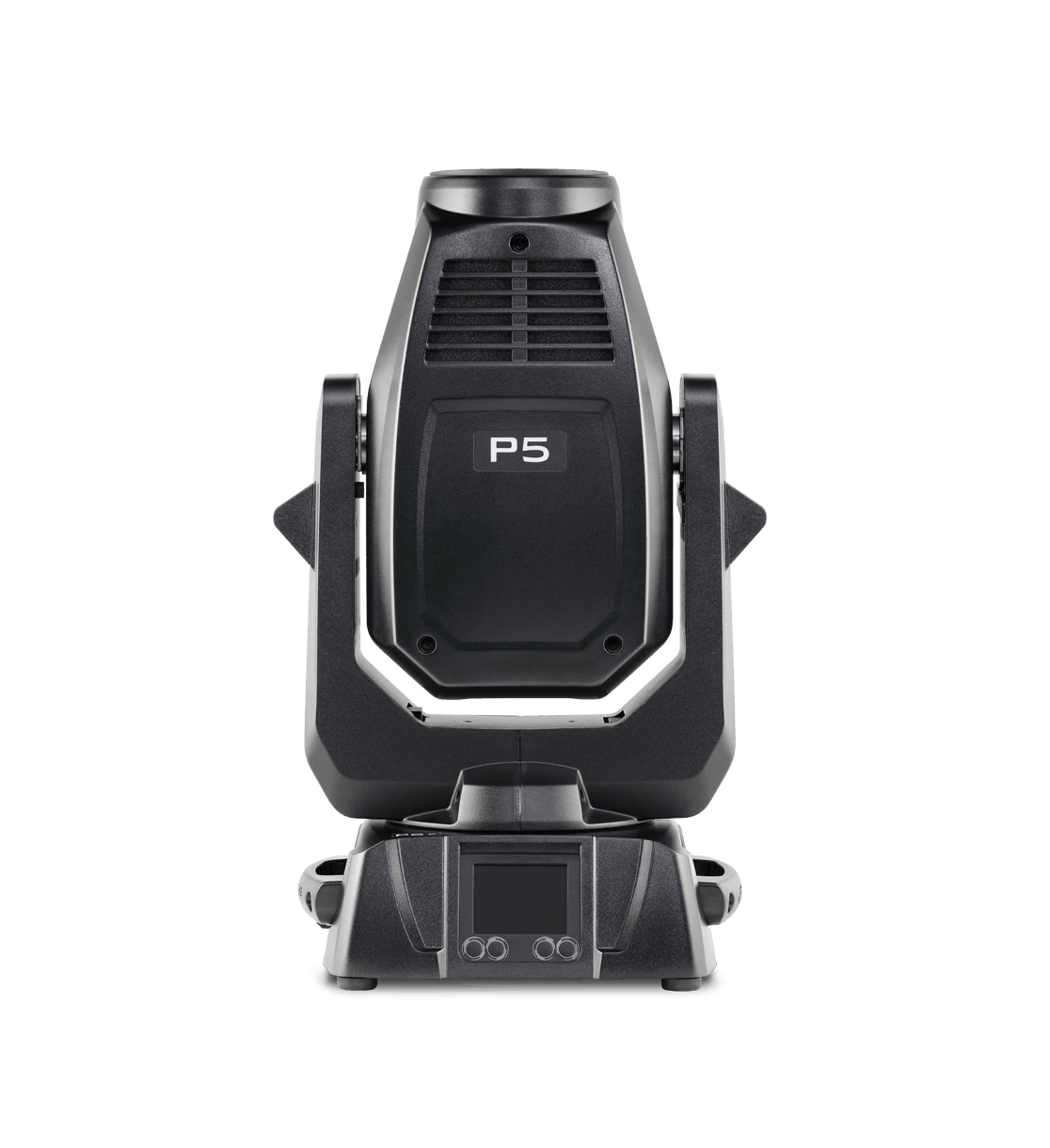

LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Ethernet in/out with bypass function switch 10/100 Mbps

Construction

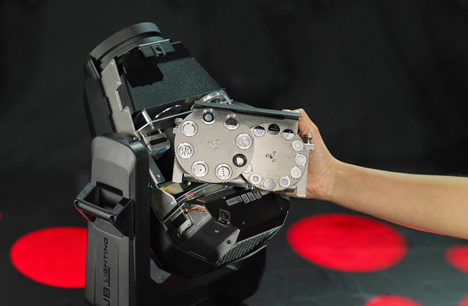

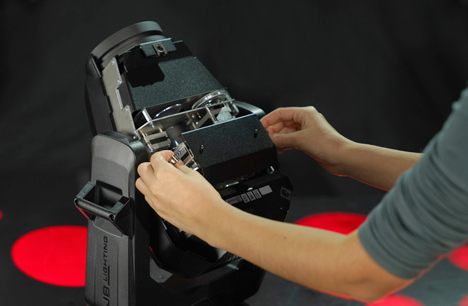

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Transport lock for tilt
High-tech heat pipe cooling in conjunction with calibrated silent fans for almost noiseless operation at max. 29 dB(A)

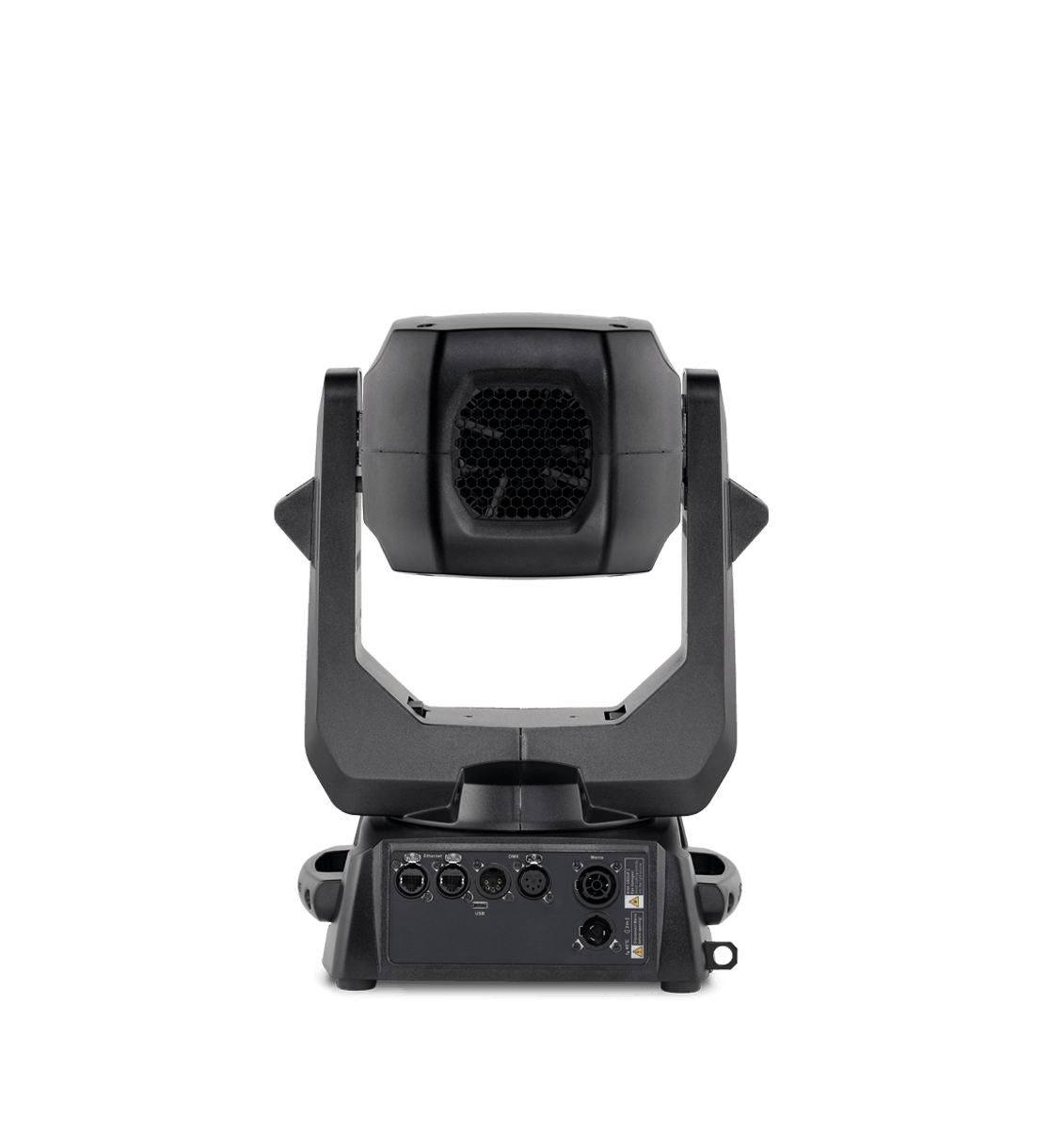

Neutrik 5pol XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT

Rigging

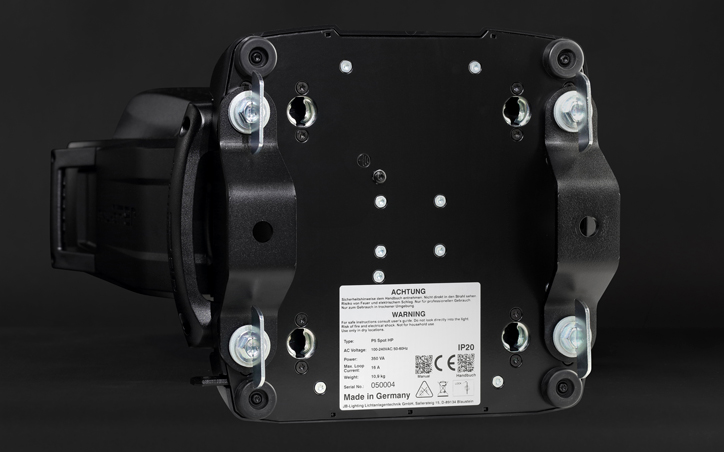

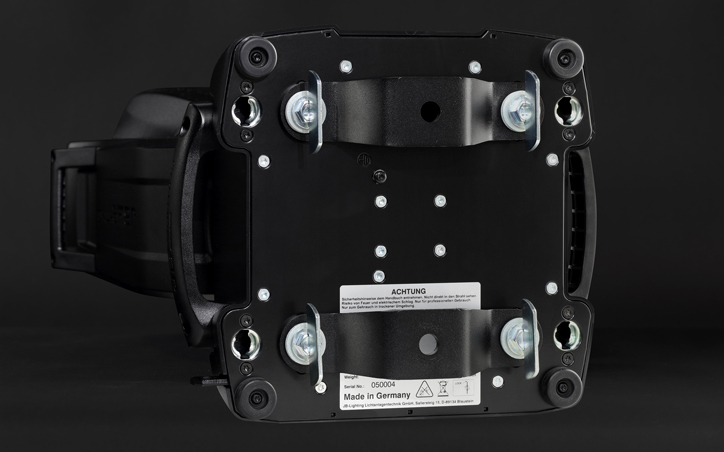

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options

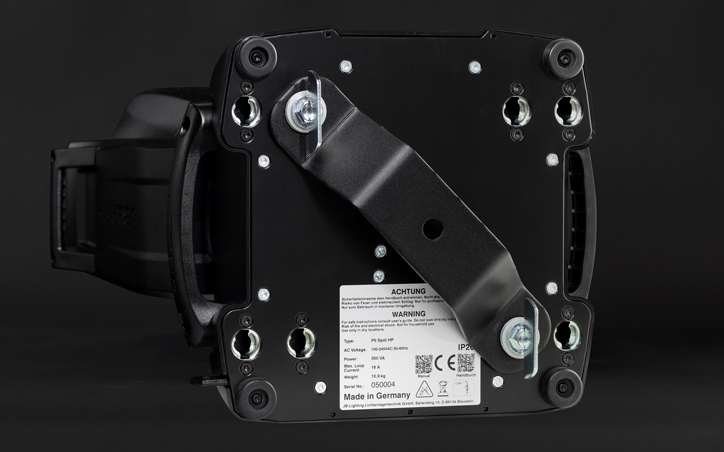

Optional: Diagonal omega bracket for two additional mounting possibilities

Electrical & thermal specification

Maximum power consumption 350 VA
Supply voltage 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,194 BTU/h
Ambient temperature: 0 to +45° (note the warm-up phase)

Mechanical specification

Dimensions: W 314 x D 241 x H 507 mm
Weight: 10.9 kg
LWR specification: (LWR = Lumen to Weight Ratio): 826 lm/kg

Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2?m long, 3 x 1.5 mm²)
2 Omega brackets

Warranty

Device: 2 years
LEDs: 4 years

Accessories

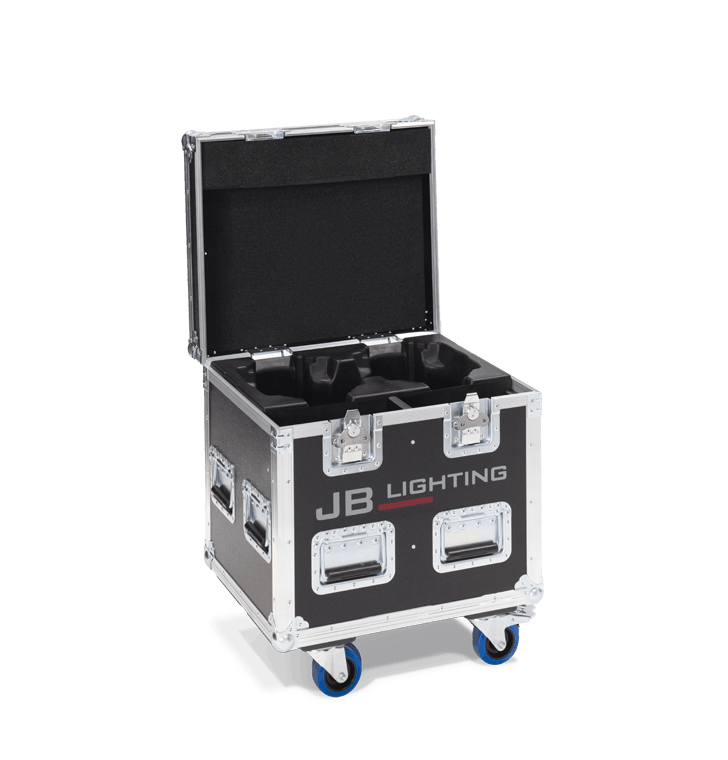

CASE50 AMPTOWN double flight case

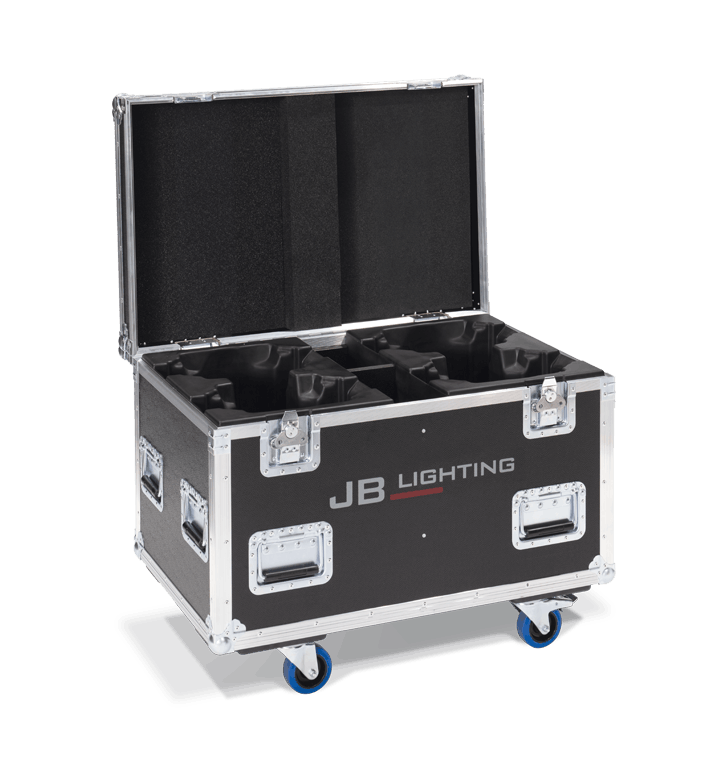

CASE51 AMPTOWN 4-compartment flight case

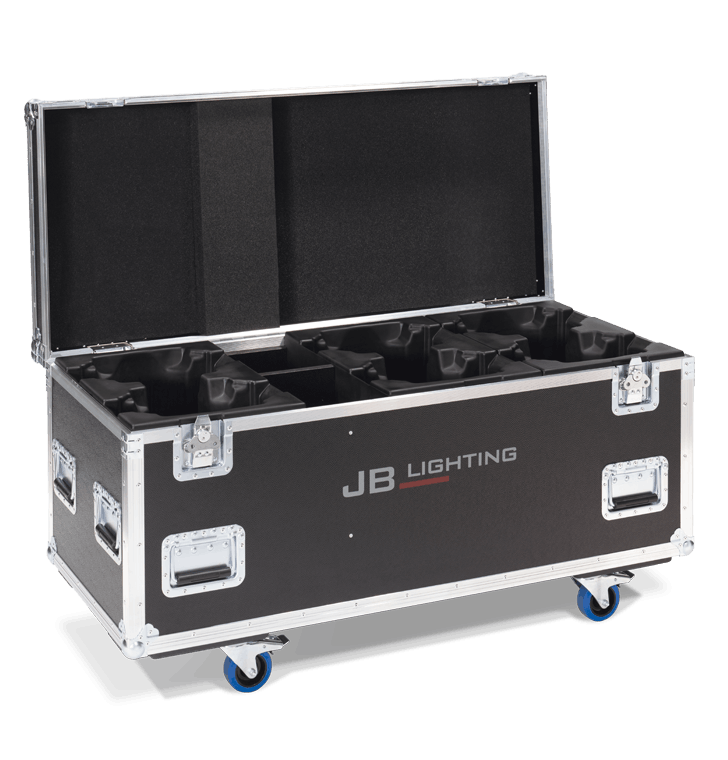

CASE52 AMPTOWN 6-compartment flight case
BLOB02 Omega bracket standard
BLOB03 Diagonal Omega bracket

P5 Spot request

Video

You must activate our “external media“ cookie guideline to call up videos directly on our website."

P5 Product video

Downloads

Declaration of conformity

First-class performance

The P5 offers almost limitless possibilities thanks to its high quality of light, precise framing properties and impressive range of effects. Thanks to its space-saving design, it can be easily integrated anywhere – on small to medium-sized stages, in clubs, at corporate events, trade fairs and even in the theatre. The P5 is a master in its class that knows no compromises – neither in terms of light quality, flexibility or range of effects. Rotating and fixed gobos, multicolor and art glass effects as well as frost and prism applications ensure that nothing is left to be desired when it comes to lighting design.

BRILLIANT COLORS

The color unit of the P5 Beamspot is equipped with 8 brilliant full colors including UV filter and a CMY color mixing system. The P5 also has 3 correction filters: High CRI, CTB and CTO. The P5's CMY color mixing system works quickly and precisely. Together with the color wheel, it covers an enormously wide color range – from pastel to highly saturated colors. The basic color temperature of the P5 can also be freely adjusted from 2000 – 13000 K via a virtual CTC channel.

Gobos

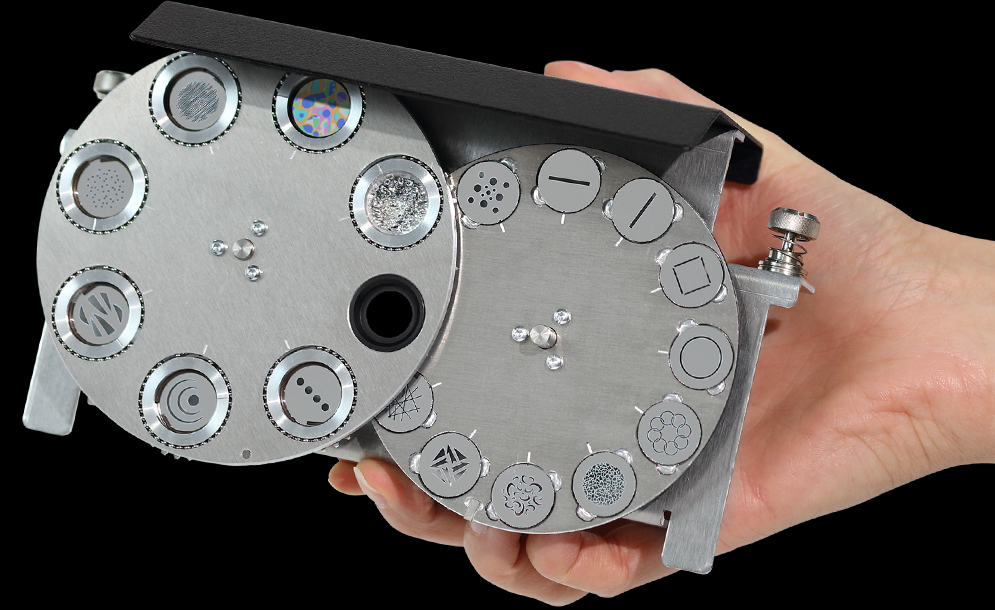

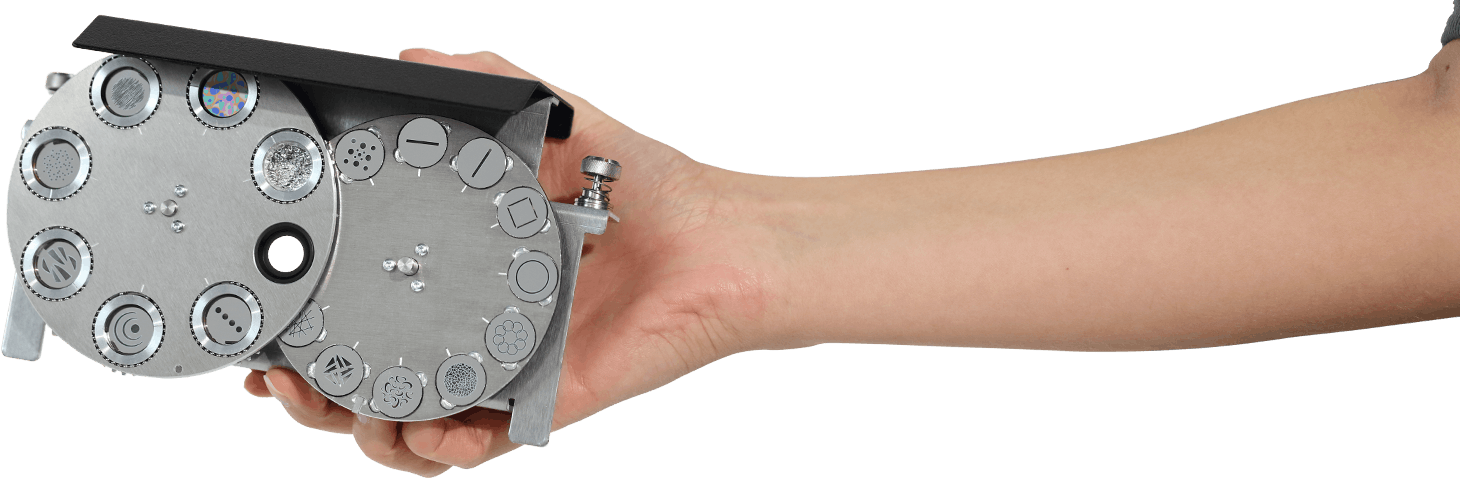

With its two gobo wheels, the P5 Beamspot is ideally equipped for a wide variety of tasks. One gobo wheel is equipped with 7 rotatable, positionable and interchangeable gobos including art glass and multicolor gobos. The other is equipped with 11 static gobos including a reducer gobo, which can be used to reduce the narrow zoom to 1.0°. The other motifs consist of a combination of five new "patterns" and ten popular "classics" whose designs have been perfectly matched to the P5.
