A valuable asset on any stage

With 330W LED power, the P10 is the perfect size for any stage. It's extremely handy, bright and works extremely quietly and precisely. It doesn't matter whether features like the framing module or its effects are used and in which zoom range from 4°– 60° its presence is required.

Thanks to its weight of only 18 kg and its compactness, it can be easily handled and installed in the rig by one person. Naturally, the P10 also feels right at home in a permanent installation in the theatre or on TV.

Technical data

Optics and light source

330 W white light LED module
HP (High Power): 6800 K; 25,000 lm (15,000 lm Output); CRI ≥70
HC (High CRI): 5800 K; 16.000 lm (10.000 lm Output); CRI ≥90
WW (Warm White): 3200 K; 12.000 lm (8.000 lm Output); CRI ≥92
Zoom range: 4° – 60° (1:15)
Large light-emitting lens Ø 135 mm
> 20,000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz

Effects

2 gobo wheels each with 7 rotatable, interchangeable and positionable gobos including multicolor gobo + open
1 color wheel with 5 full or half colors + 2 correction filters: High CRI filter (CRI ≥90) + CTB 2 + open
P10 HP and P10 HC: variable CTO (linear) + 100% CTO
P10 WW: variable CTB (linear) + 100% CTB
CMY color mixing unit for rapid, even color mixing
CTB filter for automatic color correction with gobo application
Framing module with 4 blades – each with separate motion and rotation control, the module can be rotated by 130° (+/- 65°), each blade independently by +/- 30°
2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
3-facet prism circular, rotatable and indexable
Motorised, infinitely adjustable high-speed iris
Electronic dimmer 0%–100%
Electronic shutter with pre-programmed pulse and ramp functions
Sparkle effect
Focus system with auto-focus function

Movement

High-resolution, powerful 3-phase stepper motors
Precise, very fast and silent movements
540° Pan / 280° Tilt

Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
Mini USB-for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis

Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Pan/Tilt transport lock
Fan control for almost noiseless operation, 29 dB(A)
LCD display with function keys and battery buffer, electronically rotatable
Neutrik 5pol XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT

Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options

Electrical specification

Maximum power consumption 490 VA
Input voltage range 100 V–240 V, 50/60 Hz

Mechanical specification

Dimensions: W 398 x H 609 x D 264 mm
Weight: 18 kg

Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets

LIGHT COLORS AND FEATURES

Specification:

HP – High Power

Color temperature:

6800 K

Luminosity:

25,000 lm (15,000 lm Output)

CRI:

≥70 (with CRI filter ≥90)

Correction filter:

linear CTO
6800 K to 3200 K

Usage:

Maximum luminous intensity
for optimal illumination
even from a great distance

Specification:

HC – High CRI

Color temperature:

5800 K

Luminosity:

16,000 lm (10,000 lm Output)

CRI:

≥90

Correction filter:

linear CTO
5800 K to 2700 K

Usage:

Maximum light quality
for optimal color reproduction
with the best luminosity

Specification:

WW – Warm White

Color temperature:

3200 K

Luminosity:

12,000 lm (8,000 lm Output)

CRI:

≥92

Correction filter:

linear CTB
3200 K to 5000 K

Usage:

Maximum comparability
with conventional
halogen lamps

Downloads

Declaration of conformity

FRAMING MODULE

The P10 Profile is a very compact and quiet moving light equipped with a framing module. The framing module itself can be continuously turned by 130° (+/- 65°). In addition, each of the four blades can individually be angled to the degree (+/- 30°) and inserted precisely. This allows a variety of geometric shapes to be created very quickly for targeted shading, regardless of the shading angle. Of course, the aperture slider can also be combined with a frost filter if required.

Blades can be pushed in the same distance

Module +/- 65° rotatable

Each blade approx. +/- 30° rotatable

Accurately positionable

BRILLIANT COLORS

The effect unit of the P10 Profile has 5 brilliant full colors, a High CRI filter, a CTB2 filter and CMY color mixing in all three versions (HP, HC and WW). The HP and HC versions are also equipped with CTO filters and a variable, linear CTO, which is correspondingly loaded as CTB correction in the WW version. The CMY color mixing of the P10 expands the color spectrum to an almost unlimited number of colors and enables absolutely harmonious color progressions.

HIGH
CRI

CTB

CMY color mixing

For the HP and HC version

With the P10 Profile WW

ZOOM RANGE

The P10 Profile produces impressively sharp and homogeneous beams throughout its entire zoom range of 4°–60°, which do not lose their intensity, even during frost applications.

Minimum zoom

Maximum zoom

PRISM

Gobos and framing module can be combined with a 3-facet prism and also rotated at different speeds.

3-facet prism (circular)

Prisma + Gobo in rotation

FROST FILTERS

With the help of the continuously adjustable frost filters (1°, 5°), the beam edges can be drawn into the desired blur, e.g. for wash or gobo applications.

Soft edge with 100%

Flood frost with 70%

JB slide-in technology

All plug-ins in our devices can be removed quickly and easily for servicing and cleaning without tools or manual cable disconnection.

OPTIONAL: TRAVEL LIMITATION

The maximum range of motion of the P10 Profile of 540° Pan / 280° Tilt can be limited mechanically as with the P10 Wash, if required.

For this purpose, new start and end points for the pan and/or tilt movements are defined with the help of the path limiter (accessory) – corresponding devices are available at the factory.

After installing the mechanical travel limiter and subsequent “limit” reset, the new, limited range of motion is also logged by the software and automatically taken into account in future resets.

The head movement (tilt: 280°) is limited by stops that are screwed into the required position in the bolt circle.

To curtail the rotary movement (pan: 540°), two travel limiters can be installed in the base of the lamp.

References

Neumann und Müller Veranstaltungstechnik

Our P10 Profile is already providing one highlight after another here.

Gobos

The P10 Profile is equipped with two gobo wheels that can be easily removed if required (e.g. for cleaning or gobo replacement). The two gobo wheels are each equipped with 7 rotatable, positionable and interchangeable projection gobos, including a multi-color gobo and a „Art Glass” on gobo wheel 1.

GOBOWHEEL 1

GOBOWHEEL 2

That works!

Real bespoke work – the perfect accessory for the P10 Profile „Made in Germany“

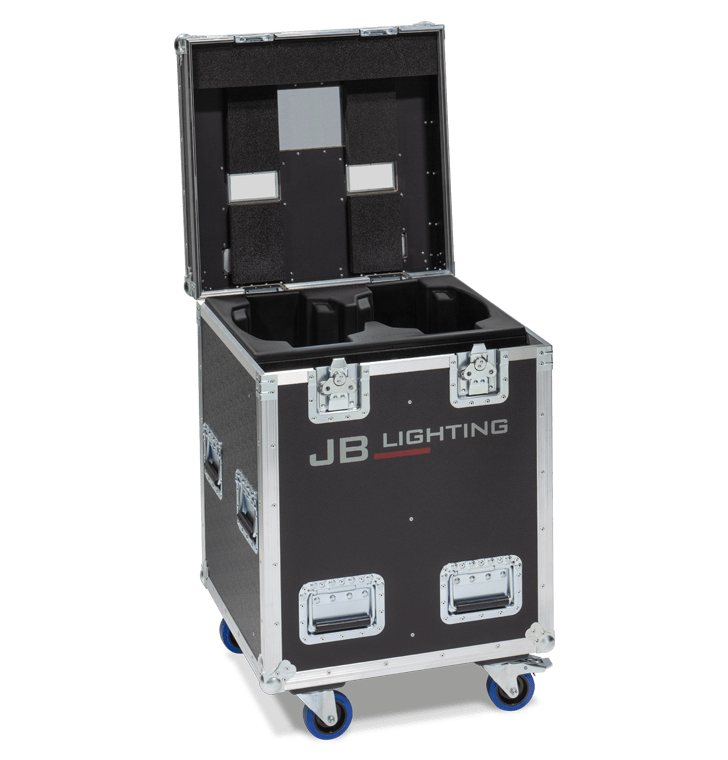

DOUBLE FLIGHT CASE

AMPTOWN (Code CASE40)

Pro case made from 7 mm birch plywood with SiP insert, stacking troughs and a scan window
Original amptown cases Blue Wheels
Dimensions: W 60 x D 60 x H 82 cm
Weight (incl. devices): approx. 40 (76) kg

4-COMPARTMENT FLIGHT CASE

AMPTOWN (Code CASE41)

Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
Original amptown cases Blue Wheels
Dimensions: W 117 x D 60 x H 82 cm
Weight (incl. devices): approx. 70 (142) kg
